Weigh-In-Motion Truck Scales (WIM systems) are widely used in highway overload enforcement, logistics transportation, ports, mining operations, and industrial weighing applications. Compared with traditional static weighing systems, WIM technology allows vehicles to be weighed without stopping, significantly improving traffic efficiency and operational productivity.
However, since weighing is performed while vehicles are in motion, system performance can be influenced by vehicle behavior, environmental conditions, installation quality, and electronic components such as load cells. Understanding common issues and their solutions is essential for ensuring stable and accurate operation.
1. Large Weighing Errors
In practical applications, users may notice inconsistent weighing results when the same vehicle passes through the system multiple times, or a significant deviation compared with static weighing results.
These issues are often related to vehicle movement conditions. If the vehicle passes the weighing zone at excessive speed or fails to maintain a stable driving state, axle loads may fluctuate dynamically, resulting in measurement errors. In addition, uneven road surfaces, vehicle suspension vibration, and insufficient sampling performance of load cells may also affect weighing accuracy.
To improve accuracy, vehicles should be guided to pass the weighing area at a controlled and uniform speed. Regular maintenance of the approach road surface is also important to ensure smooth vehicle movement. In addition, using high-speed data acquisition load cells and optimized signal processing algorithms can effectively reduce the influence of vibration and dynamic disturbance.
3. Abnormal Load Cell Signals
Load cells are the core components of a Weigh-In-Motion truck scale system. When signal abnormalities occur, the system may display unstable readings, data jumps, or even complete signal loss.
Typical causes include damaged cables, corroded connectors, moisture intrusion, electromagnetic interference, and overload impacts from heavy vehicles. These factors can gradually degrade sensor performance over time.
To ensure stable operation, shielded cables and waterproof connectors should be used. Proper grounding and anti-interference measures should also be implemented. In addition, selecting load cells with appropriate capacity and impact resistance helps improve long-term reliability.
5. Data Communication and System Integration Issues

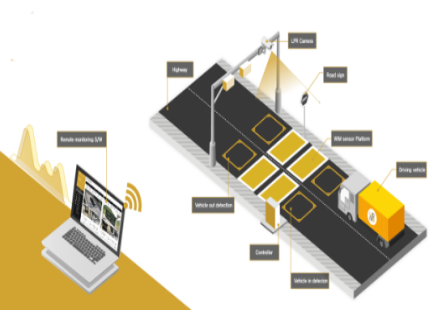

Modern WIM truck scale systems are often integrated with license plate recognition cameras, traffic enforcement platforms, and central management systems. Communication failures may result in missing data uploads or system integration interruptions.
These issues are commonly caused by network instability, incompatible communication protocols, software version mismatches, or server configuration problems.
To improve system reliability, standardized communication protocols should be adopted, and stable wired or wireless networks should be established. Redundant communication channels and regular software updates can further enhance system stability.
2. Vehicle Classification and Axle Detection Errors
Accurate axle detection and vehicle classification are essential for correct weight calculation in WIM truck scale systems. When detection errors occur, the system may misidentify vehicle types or axle numbers, which directly affects data reliability.
Common causes include malfunction or aging of loop detectors, reduced sensitivity of vehicle separation devices, and environmental interference such as heavy rain, fog, or strong sunlight. In some cases, system algorithms may also fail to properly recognize special vehicle types.
To address these issues, regular inspection and maintenance of vehicle detection devices are required. It is also recommended to upgrade recognition algorithms and continuously expand the vehicle database to improve adaptability to complex traffic conditions.
4. Environmental Influences on System Performance
WIM truck scales are typically installed in outdoor environments and must operate under varying weather conditions. Temperature fluctuations, rain, snow, dust, and coastal salt exposure can all affect system performance.
Low temperatures may reduce load cell sensitivity, while ice or water accumulation can affect vehicle movement across the scale platform. In coastal or industrial areas, corrosion may accelerate equipment aging.
To mitigate these effects, load cells with a wide operating temperature range and automatic temperature compensation should be selected. Drainage systems, anti-freezing structures, and corrosion-resistant materials are also recommended to ensure stable year-round operation.
6. Mechanical Structure and Foundation Problems
Mechanical stability is another critical factor affecting long-term system performance. Continuous overload operation, foundation settlement, or improper installation may lead to platform deformation, cracking, or uneven settlement.
Although these issues develop gradually, they can significantly impact measurement accuracy if not addressed in time.
Regular inspection of the scale platform, foundation, and structural components is recommended. Early maintenance and reinforcement can effectively prevent serious failures and extend equipment service life.
Conclusion
The performance of a Weigh-In-Motion Truck Scale system depends on multiple factors, including load cell quality, vehicle behavior, installation conditions, environmental influences, and system integration stability.
By understanding common operational issues and implementing proper maintenance strategies, users can significantly improve weighing accuracy, reduce system downtime, and ensure long-term reliable operation. With the continued development of intelligent transportation systems, WIM technology will play an increasingly important role in modern logistics management and highway enforcement.
