In the fields of road transport regulation, logistics measurement, and traffic engineering, vehicle weighing technologies are generally divided into Static Weighing and Weigh-in-Motion (WIM). These two methods differ significantly in measurement principle, system configuration, application scenarios, and data accuracy, and they are used for different operational and regulatory purposes.
1. Static Weighing
Static Weighing refers to the method in which a vehicle is completely stopped on a weighbridge before measurement is taken. In this condition, the vehicle is stationary, and the load is evenly distributed across the load cells. The system calculates the total vehicle weight based on stable electrical signals from the load cells.

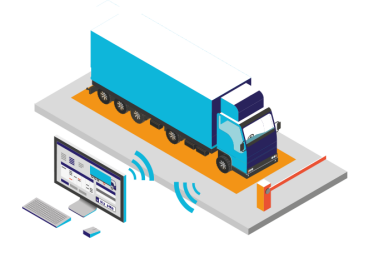

A typical static weighing system consists of a weighbridge platform, load cells, an indicator, and a data processing unit. Once the vehicle is fully stationary, the system collects stable readings to ensure high measurement accuracy.
The main advantage of Static Weighing is its high accuracy and strong data stability. Under proper operating conditions, it can meet requirements for commercial trade settlement, custody transfer, and production batching. Therefore, static truck scales remain the standard solution for legal-for-trade weighing applications.
However, its main limitation is low efficiency. Since vehicles must stop for weighing, the process is time-consuming and may lead to traffic congestion in high-volume environments. It also requires more manual coordination and site management.
2. Weigh-in-Motion (WIM)
Weigh-in-Motion (WIM) is a technology that measures vehicle weight while the vehicle is in motion. Vehicles pass through a sensing zone without stopping, and the system collects dynamic force signals generated by the moving axle loads.
WIM systems typically use technologies such as piezoelectric load cells, strain gauges, and bending plates installed in or on the road surface. These load cells detect pressure changes and pavement deformation caused by moving vehicles, and the system estimates axle loads and gross vehicle weight through calibration algorithms.
The key advantage of WIM is high efficiency. It allows continuous traffic flow without interruption, making it suitable for highway enforcement, overload screening, traffic monitoring, and classification systems.
However, WIM accuracy is affected by multiple factors, including vehicle speed, suspension conditions, tire pressure, road surface quality, and temperature. As a result, its accuracy is generally lower than static weighing systems and is typically used for screening and statistical purposes rather than legal trade.
3. Key Differences
The fundamental difference between Static Weighing and Weigh-in-Motion lies in the measurement condition.
Static Weighing is performed under stationary conditions, where the system is in a stable mechanical state, resulting in higher accuracy and repeatability. In contrast, WIM measures vehicles under dynamic conditions, requiring signal processing and compensation algorithms to estimate weight.
In terms of accuracy, Static Weighing is superior and suitable for legal and commercial applications. WIM shows greater variability but can be improved through multi-load cell fusion and calibration techniques.
In terms of efficiency, WIM has a clear advantage as it supports continuous vehicle flow without stopping. Static systems are slower due to individual vehicle weighing requirements.
In terms of application, Static Weighing is mainly used for commercial transactions and legal metrology, while WIM is primarily used for traffic management and enforcement.

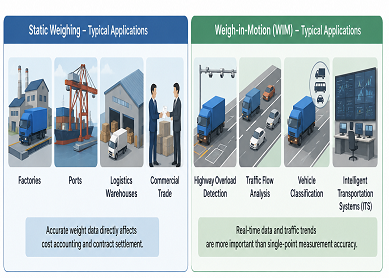

4. Typical Applications
Static Weighing is widely used in factories, ports, logistics warehouses, and commercial trade environments where accurate weight data directly affects cost accounting and contract settlement.
Weigh-in-Motion systems are mainly used in highway overload detection, traffic flow analysis, vehicle classification, and Intelligent Transportation Systems (ITS). In these applications, real-time data and traffic trends are more important than single-point measurement accuracy.
In modern traffic management systems, WIM is often used as a pre-screening tool, directing suspected overloaded vehicles to static weighing stations for verification. This creates a combined approach of dynamic screening and static verification.
5. Conclusion
Static Weighing and Weigh-in-Motion represent two different approaches to vehicle weighing.
Static systems focus on high accuracy and stability, making them suitable for legal and commercial measurement applications. WIM systems focus on efficiency and continuous monitoring, making them suitable for traffic enforcement and screening.
Rather than replacing each other, the two technologies are often used in a complementary way to balance accuracy and efficiency in modern transport and logistics systems.
