1. Concept and Basic Principle
Weigh-In-Motion (WIM) is a technology that measures the weight of a vehicle while it is moving. Unlike traditional weighing methods, it does not require vehicles to stop at a scale. Instead, the system collects data as vehicles pass over load cells installed in roads, bridges, or rail tracks.

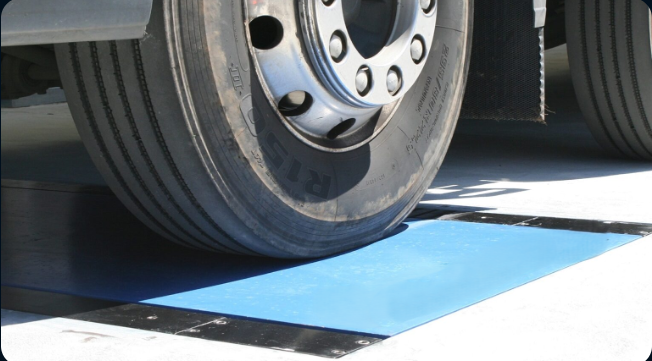

These load cells detect the pressure or force created by the vehicle’s tires. The signals are then converted into electrical data and processed to calculate axle load, total vehicle weight, and other movement-related parameters. The results are sent to a central system for monitoring and analysis.
The main value of WIM is that it changes weight measurement from a static process to a continuous and real-time one. This improves traffic flow and reduces delays at checkpoints.
2. Development Background
The idea of measuring vehicle weight in motion began in the early 20th century, when researchers tried to estimate weight using dynamic forces produced by moving vehicles. These early attempts were mostly experimental and limited in accuracy.
A major breakthrough came in the 1970s when the first practical WIM system was developed in the Netherlands. This marked the beginning of real-world applications, especially in road traffic monitoring and enforcement.
Over time, improvements in load cell technology, data processing, and digital communication allowed WIM systems to become more accurate and reliable. Modern systems can now integrate cameras and software tools to support traffic analysis, vehicle identification, and overload detection.
3. Working Process and System Types

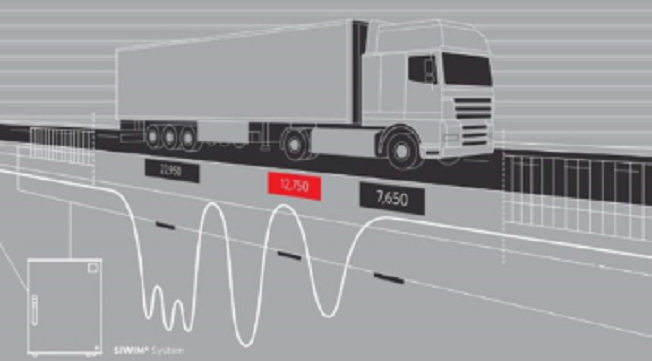

WIM systems work by detecting the force exerted by a moving vehicle on the road surface. This force is captured by different types of load cells, converted into electrical signals, and processed using mathematical models to estimate weight.
At the same time, the system can record additional information such as vehicle speed, number of axles, axle spacing, and time of passage. This data is transmitted to a control center for further use in traffic management or law enforcement.
There are several types of WIM systems:
a. Low-speed WIM operates in controlled areas where vehicles move slowly, which improves accuracy.

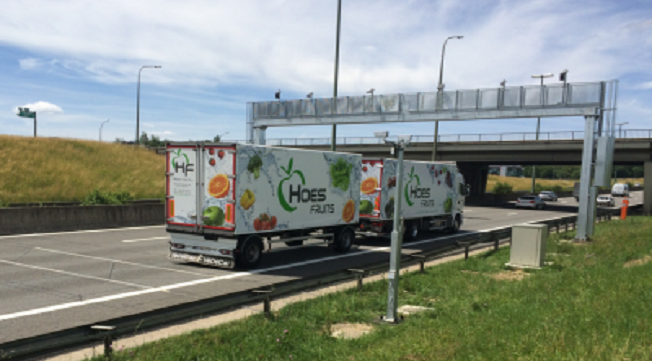

b. High-speed WIM works in normal traffic flow and allows continuous monitoring, although its accuracy is slightly lower due to vehicle dynamics.

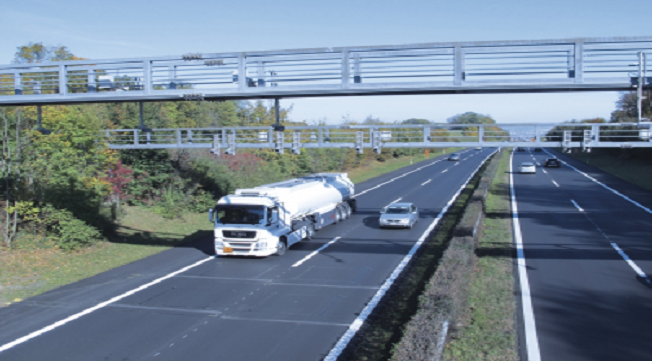

c. Bridge-based WIM uses structural strain from bridges to estimate weight and can also support bridge health monitoring.
d. On-board WIM is installed directly on vehicles and is often used in logistics to track load conditions during transport.
4. Applications and Benefits
WIM is widely used in transportation, logistics, law enforcement, railways, mining, and agriculture. In transport and logistics, it helps detect overloaded vehicles and improves overall transport efficiency. In enforcement, it allows authorities to identify violations without stopping every vehicle, saving time and manpower.
In infrastructure management, WIM data is used to study the impact of heavy vehicles on roads and bridges. This helps in planning maintenance and strengthening structures where needed. In railways, it helps monitor train loads to prevent excessive track wear. In mining and agriculture, it supports fast and continuous weighing of heavy transport vehicles in demanding environments.
Compared with traditional static weighing, WIM improves traffic flow, provides real-time information, reduces manual work, and enhances safety by controlling overloading.
5. Limitations and Challenges
Although WIM is highly useful, it still has several limitations. Measurement accuracy can be affected by external conditions such as vehicle speed, road surface quality, temperature, and vibration. These factors can cause variations in results, especially in high-speed systems.
Another challenge is cost. Installing WIM systems requires load cells, communication networks, and data processing infrastructure, which can be expensive. In addition, regular maintenance and calibration are necessary to ensure stable performance, as outdoor environments can damage equipment over time.
There are also limitations related to vehicle types and load conditions. Irregular loads or special vehicle structures may reduce accuracy. Finally, some regions face regulatory issues, including data standards, privacy concerns, and legal certification for enforcement use.
