Introduction
Electronic rail weighbridges are important weighing equipment in railway freight transportation. For dynamic rail weighbridges, the operating speed of railway vehicles as they pass through the weighing area can directly affect the weighing process. Therefore, operating speed is an important technical parameter to consider when selecting and using an electronic rail weighbridge.
1. What Is the Operating Speed of a Rail Weighbridge?

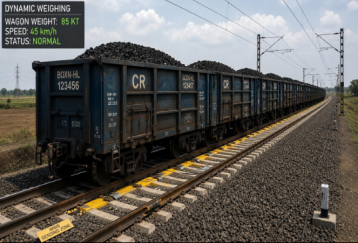

For dynamic rail weighbridges, operating speed generally refers to the speed at which a railway vehicle passes through the weighing system. Unlike static rail weighbridges, dynamic rail weighbridges collect weighing signals from wheels or axles while the vehicle is moving. The weighing load cells and data processing system then calculate the vehicle’s weight.
According to OIML R 106, automatic rail-weighbridges are designed to determine the mass of railway vehicles while they are in motion. The equipment should specify its applicable maximum and minimum operating speeds, as well as its maximum and minimum weighing capacities.
Therefore, dynamic rail weighbridges are not simply designed to achieve higher speeds. Instead, they need to maintain stable and reliable weighing performance within the specified operating speed range.
2. Why Does Operating Speed Affect Weighing Results?

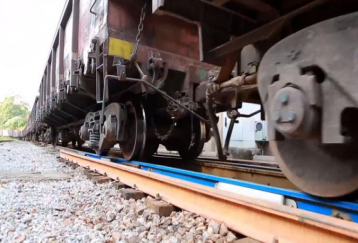

When a railway vehicle passes over a rail weighbridge, its wheels generate dynamic loads on the weighing load cells. As the operating speed changes, the dynamic interaction between the vehicle and the track also changes. If the vehicle speed exceeds the designed operating range of the weighing system, it may affect load cell signal acquisition and data processing, which can influence the final weighing result.

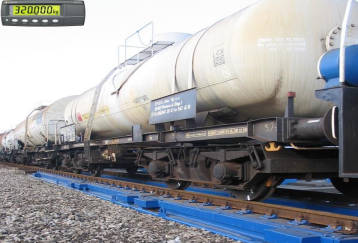

In addition to speed, factors such as track condition, vehicle structure, load distribution, and installation conditions can also affect dynamic weighing performance. Therefore, automatic rail weighbridges should operate under specified working conditions to ensure that measurement results meet the applicable metrological requirements. WELMEC requirements for automatic rail-weighbridges also take into account factors such as operating speed, liquid loads, track inclination, loading conditions, and the rate of operation.
3. Operating Speed Requirements for Different Applications
Different railway transportation applications have different requirements for weighing speed and operational efficiency.
In high-volume transportation environments such as mines, ports, steel plants, and power plants, railway vehicles may pass through weighing systems frequently. Dynamic rail weighbridges can weigh vehicles while they are moving, reducing the need for stopping and waiting and improving overall transportation efficiency.
For applications that require higher weighing accuracy, more attention should be paid to the accuracy class, operating speed range, and installation conditions of the weighing system. OIML R 106 classifies automatic rail-weighbridges into four accuracy classes: 0.2, 0.5, 1, and 2, with corresponding maximum permissible errors for each class.
4. How to Properly Control Operating Speed?
In practical applications, railway vehicles should operate within the speed range specified by the rail weighbridge manufacturer. Increasing the vehicle speed beyond the recommended range simply to improve transportation efficiency is not advisable.
At the same time, the weighing area and connecting tracks should be maintained in good condition. Regular inspections should also be carried out on the weighing load cells, track structure, and related electrical equipment. If weighing data becomes unstable or abnormal after long-term operation, the vehicle speed, track condition, and load cell signals should be checked together to identify the possible cause.
For dynamic rail weighbridges, stable operating speed, good track conditions, and a reliable data acquisition system all contribute to accurate and stable weighing performance.
Conclusion
The operating speed of an electronic rail weighbridge affects not only railway transportation efficiency but also the measurement performance of dynamic weighing systems. The appropriate operating speed should remain within the specified working range of the equipment and should be determined based on vehicle type, transported materials, site conditions, and accuracy requirements.
With the continued development of dynamic weighing technology, rail weighbridges are being increasingly used in continuous railway transportation applications. For mines, ports, and large industrial enterprises, improving vehicle throughput while maintaining weighing accuracy will remain an important consideration in the design and application of rail weighbridge systems.
